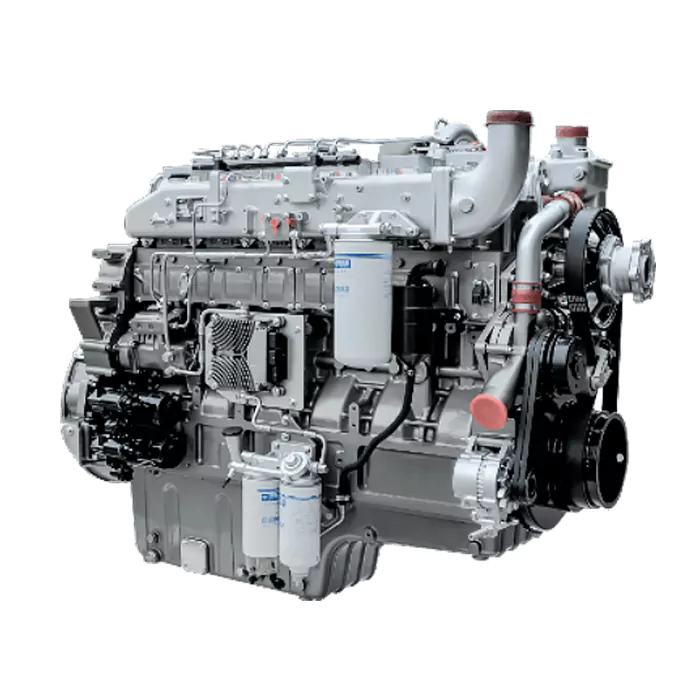

Diesel engine series YC6TD YC DIESEL Power coverage 750~950Ps - Power for engineering machinery
Motor for YUCHAI Machines

Diesel engine series YC6TD YC DIESEL Power coverage 750~950Ps - Power for engineering machinery

About Us

High economy
It adopts Liebherr's European high-pressure common rail injection pump, common rail piping, three-component inyector + self-developed control system, precise injection control, good fuel economy.

Power coverage 750~950Ps

Categories: , ,

Power coverage 750~950Ps
Application scenario: Supports 36-45m³/2Mpa air compressor, 100-ton mining wagon, locomotive, one-piece drilling platform, etc.

Technical parameters
Models YC6TD765-T300 YC6TD800-T300 YC6TD950-T300
Number of cylinders - diameter × stroke (mm) 6-152×180 6-129×165 6-129×165
Displacement L 19.598 12.939 12.939
Number of valves per cylinder 4 4 4
Air intake method Pressurized intercooler Pressurized intercooler Pressurized intercooler
Calibration power/speed kW/r/min 561/1900 588/1900 700/1800
Maximum torque/speed N.m/r/min 3800/1200~1500 3600/1200~1500 3600/1200~1500
Low speed/rpm pair ≥1800/800 ≥1800/800 ≥1800/800
Emission level GB20891-2014 Phase III GB20891-2014 Phase III GB20891-2014 Phase III
Emission technology roadmap
External features: lower fuel consumption g/kW.h ≤190 ≤190 ≤190
Acceptance exchange intervals 500 hours 500 hours 500 hours
