Brushless AC synchronous generator for ground use QYI 314 series
Electric Generator

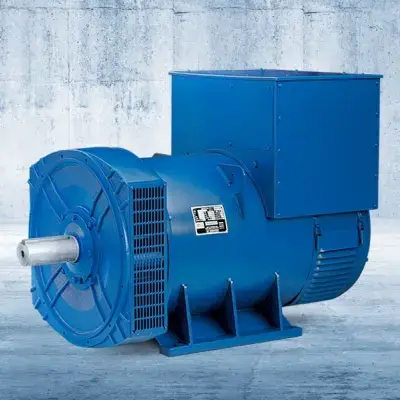

Brushless AC synchronous generator for ground use QYI 314 series

About Us
Key Performance Parameters​
  • Drip-proof enclosure (IP23 degree of protection)
  • Class H insulation
  • Nominal voltage 400V
  • Three-phase four-wire system
  • Steady-state voltage regulation rate ≤ ±1%
  • Transient voltage regulation rate ≤ -18% ~ +20%
  • Voltage waveform distortion rate THD ≤ 3%
  • THF telephone harmonic factor ≤ 2%
  • TIF phone interference factor ≤ 50
  • Generators with other voltage ranges will be manufactured according to user demand.
Categories: ,

1500rpm/50Hz/380~415V

Type Nominal power Weight
Continuous 40°C 125K Reserve 40°C 150K Reserve 27°C 163K Single bearing Double bearing
KW KVA KW KVA KW KVA kg kg
QY I 314C 200 250 216.0 270.0 222.0 277.5 800 789
QY I 314DS 220 275 237.6 297.0 244.2 305.3 830 820
QY I 314D 240 300 259.2 324.0 266.4 333.0 878 868
QY I 314ES 260 325 280.8 351.0 288.6 360.8 920 910
QY I 314E 280 350 302.4 378.0 310.8 388.5 970 956
QY I 314FS 300 375 324.0 405.0 333.0 416.3 1088 1068
QY I 314F 320 400 345.6 432.0 355.2 444.0 1103 1085



1500rpm/60Hz/380~415V

Type Nominal power Weight
Continuous 40°C 125K Reserve 40°C 150K Reserve 27°C 163K Single bearing Double bearing
KW KVA KW KVA KW KVA kg kg
QY I 314C 250 313 265.0 331.3 275.0 343.8 800 789
QY I 314DS 264 330 279.8 349.8 290.4 363.0 830 820
QY I 314D 300 375 318.0 397.5 330.0 412.5 878 868
QY I 314ES 312 390 330.7 413.4 343.2 429.0 920 910
QY I 314E 335 419 355.1 443.9 368.5 460.6 970 956
QY I 314FS 360 450 381.6 477.0 396.0 495.0 1088 1068
QY I 314F 380 475 402.8 503.5 418.0 522.5 1103 1085
Operating conditions​
  • The generator can operate at rated power under the following conditions:
  • Altitude of no more than 1000 meters.
  • Cooling air temperature 258~313K (-15°C ~ +40°C).
  • Relative humidity not exceeding 90%.
​Features​
  • The optional permanent magnet generator and auxiliary winding excitation system is capable of withstanding short-circuit current.
  • The advanced automatic voltage regulator (AVR) control system guarantees reliable operation even under the harshest conditions.
  • Easy paralleling with the mains or other generators. The standard 2/3 pitch winding suppresses excess current in the neutral.
  • Dynamically balanced rotor with sealed ball bearings, available in single and double bearing structures.
  • Simple installation, convenient maintenance and service; easy-to-operate terminals, rotary rectifiers and coupling screws.
  • Multiple sizes of transition adapters and single bearing disk plate couplings.
  • Compliance with all major terrestrial standards.
